Characteristic

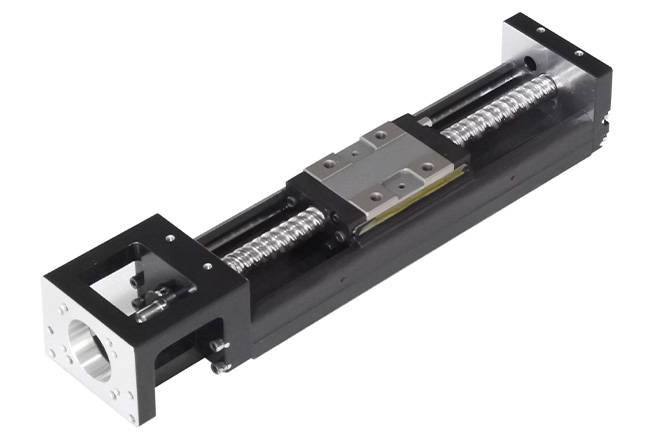

■ Modular design: This series module integrates a ballscrew and guideway in a U-shaped body to realize compact structure.
■ High load capacity: Guideways are Gothic structure.
■ High rigidity: Module body structure is optimized.
■ High precision: Precision grinding guideway + Precision ballscrew enable carriage to achieve high accuracy and high repeat positioning accuracy.
■ High Speed: Low friction, high precision, small starting torque, easy to achieve high speed.
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material.
■ Dustproof: Provide open, shield and fully seal protective structures to meet different needs.
■ Multi-carriages are available: Two or more carriages to achieve higher load.
■ Standard and Light load capacity carriage are available.
■ Easy maintenance: Grease Nipples and integrated lubricate circuit are set on/side the side carriages.
■ Corrosion resistance: Rail and carriages are surface-treated to achieve a good rust resistance performance.
Main Parameters
■ Effective stroke: 34-700mm,
■ Load capacity: Provide SKK60, SKK86 two-size modules with the max. load 100,000 N.
■ Speed: Up to 1.2m/s
■ Accuracy: Repeated positioning accuracy reach ±0.01 for general grade and ±0.003 for precision grade.
Main applications
■ Conveying equipment
■ Dispensing and welding equipment
■ Inspection and testing equipment
■ Automatic assembling equipment
