Characteristic

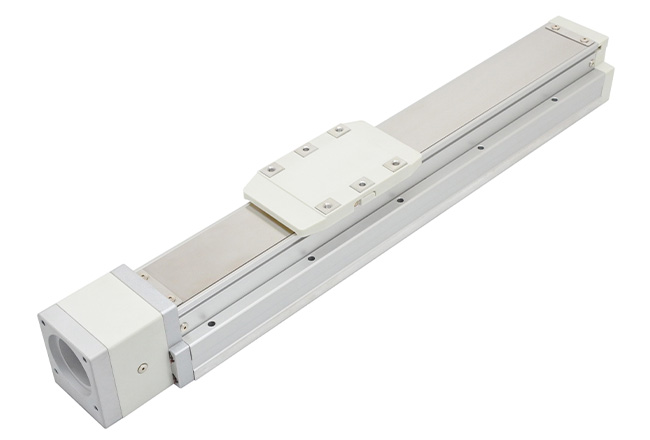

■ Modular design: This series module integrates a ballscrew and guideway in a U-shaped body to realize compact structure.
■ Light weight with high rigidity: Optimized structure + aluminium module body
■ High load capacity: Guideways are Gothic structure.
■ High precision: Precision grinding guideway + Precision ballscrew enable carriage to achieve high accuracy and high repeat positioning accuracy.
■ High Speed: Low friction, high precision, small starting torque, easy to achieve high speed.
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material.
■ Dustproof: Fully seal protective structures to meet different needs.
■ Easy maintenance: Grease Nipples and integrated lubricate circuit are set on/side the side carriages.
■ Corrosion resistance: Aluminium body + stainless steel seal
Main Parameters
■ Effective stroke: 50-1250mm,
■ Load capacity: Provide SGTH5、SGTH8、SGTH12 three size modules with the max. load 110Kg.
■ Speed: Up to 1.6m/s
■ Accuracy: Repeated positioning accuracy ±0.01
Main applications
■ Conveying equipment
■ Dispensing and welding equipment
■ Inspection and testing equipment
■ Automatic assembling equipment
