Characteristic

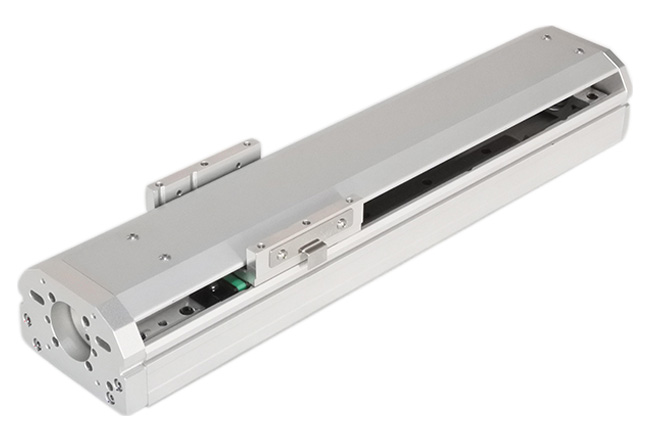

■ Modular design: This series module integrates a ballscrew and guideways in a U-shaped body to realize compact structure.
■ Light weight with high rigidity: Optimized structure + aluminium module body
■ High load capacity: Select high load capacity linear guides and ball screw.
■ High precision: Precision grinding guideway + Precision ballscrew enable carriage to achieve high accuracy and high repeat positioning accuracy.
■ High Speed: Low friction, high precision, small starting torque, easy to achieve high speed.
■ Excellent wear resistance: All raceways are induction hardened, which greatly improves the hardness and strength of the material.
■ Dustproof: Designed with protective structures of aluminium shield to meet different needs.
■ Easy maintenance: Easy to fill lubricate to linear guides and ball screw from Grease Nipples.
Main Parameters
■ Effective stroke: 50-1500mm,
■ Load capacity: Provide SETH14、SETH17、SETH22 three size modules with the max. load 150Kg.
■ Speed: Up to 2m/s
■ Accuracy: Repeated positioning accuracy ±0.01
Main applications
■ Conveying equipment
■ Dispensing and welding equipment
■ Inspection and testing equipment
■ Automatic assembling equipment
