Characteristic
■ Use European raw materials;
■ Partial extension: Extension ratio is 50%. Max. 70% customization;
■ Heavy duty: Cold-drawn steel profiles, optimized structure to meet high duty request;
■ Low deflection: Safety margin is designed to have a low deflection in the extended state.
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material. Then the impact resistance, wear resistance and service life are improved accordingly.
■ Surface protection: Surfaces are always protected against corrosion. Black Zinc plating is standard. White Zinc, Nickel plating are available.
■ Accessories and special functions：Set a limit bolt at the end of external rail to realize the conversion of ingle or Bi-directional extend.
Quick Product Selection

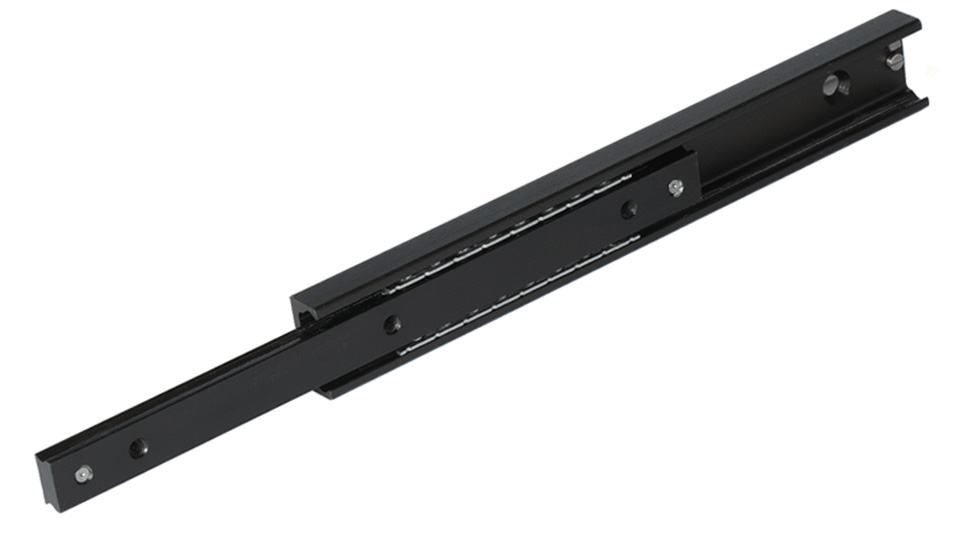

■ The maximum load per pair: TPE telescopic rail provide three section sizes of 28, 35 and 43 for different load capacities. A pair max. load capacity reaches 48460N.
■ The rail length (Available installation space) and the desired stroke: TPE telescopic rail max. length and max. stroke reach 1970mm and 1013mm.
Main Applications
■ Automated logistic & storage equipment, Special vehicle, Heavy duty packaging equipment, Aircraft seats, etc.
