Characteristic
■ Use European raw materials;

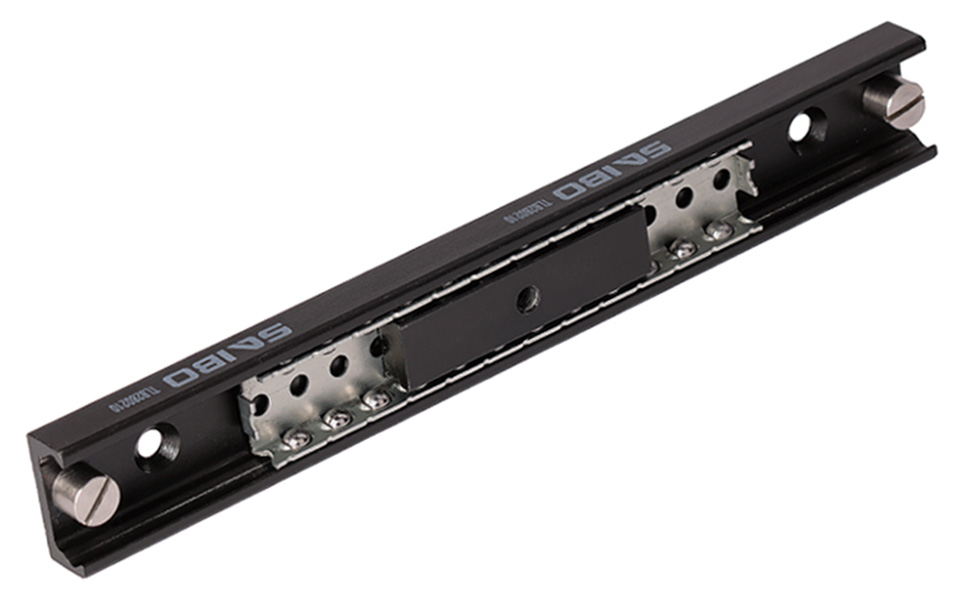

■ Slider runs limited in external rail: Thickness direction structure is very compact.
■ Multiple sliders configuration: Multiple sliders can be configured in the same guide rail, and different sliders can move synchronously or relatively independently;
■ Heavy duty: Cold-drawn steel profiles, optimized structure to meet high duty request;
■ Excellent wear resistance: The raceway is induction hardened, which greatly improves the hardness and strength of the material. Then the impact resistance, wear resistance and service life are improved accordingly.
■ Surface protection: Surfaces are always protected against corrosion. Black Zinc plating is standard. White Zinc, Nickel plating are available.
■ Customized preload: Sliders preload can be customized according to the specific application.
Quick Product Selection
■ Installation method: Horizontal or side installation
■ The maximum load per pair: TLB telescopic rail provide three section sizes of 28, 35 and 43 for different load capacities. A pair max. load capacity reaches 6500N.
■ The rail length (Available installation space) and the desired stroke: TDB telescopic rail max. length and max. stroke reach 1970mm and 2026mm.
Main Applications
■ Packaging machine, Construction machine, Medical and industry inspection equipment, High-speed train door etc.
